Czech Army RF-10 Military Radio

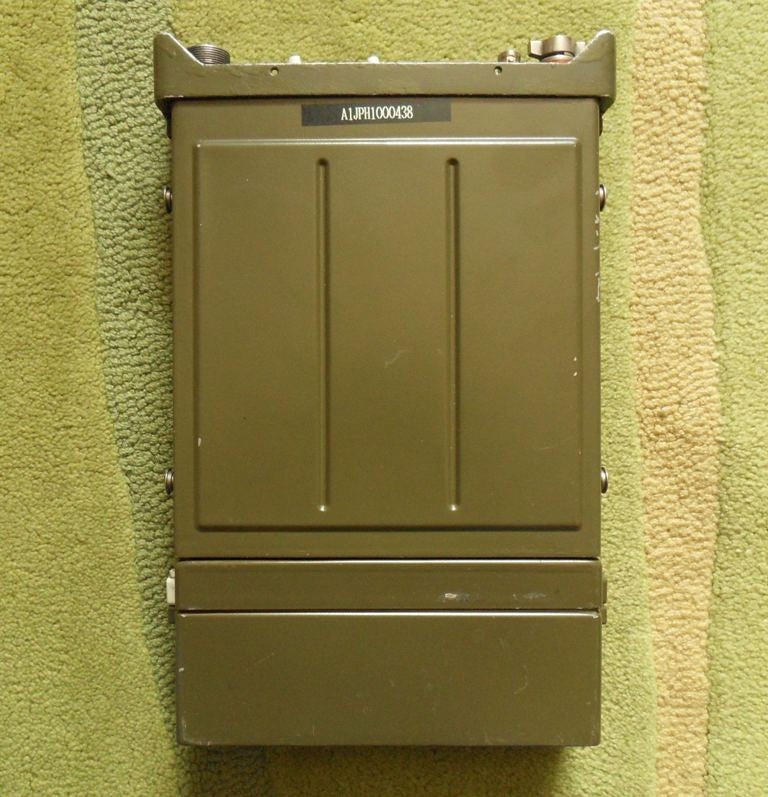

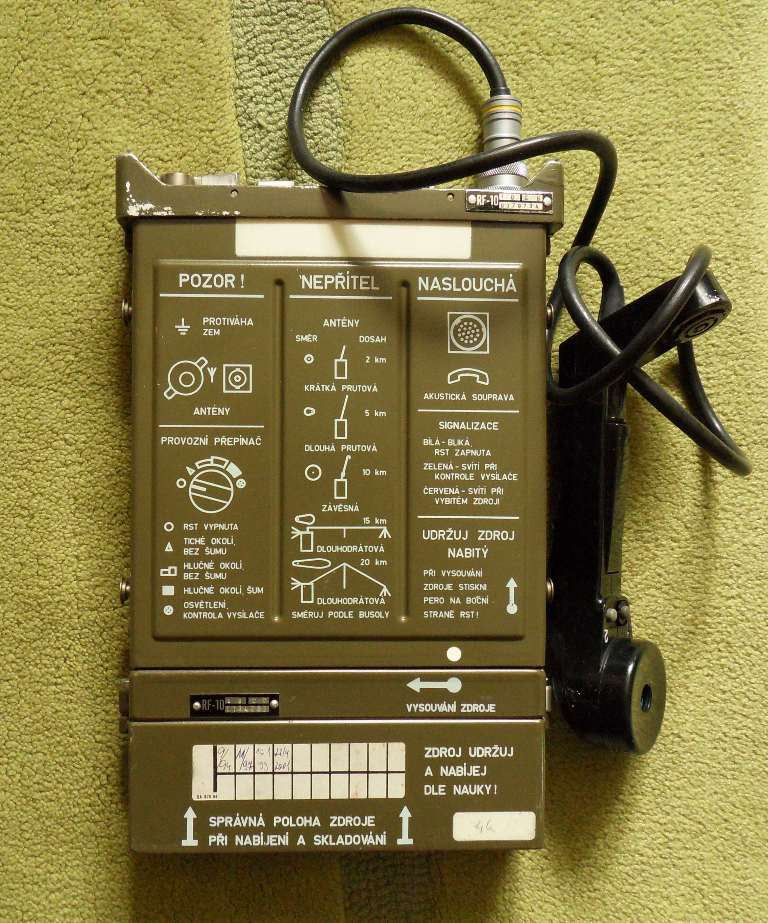

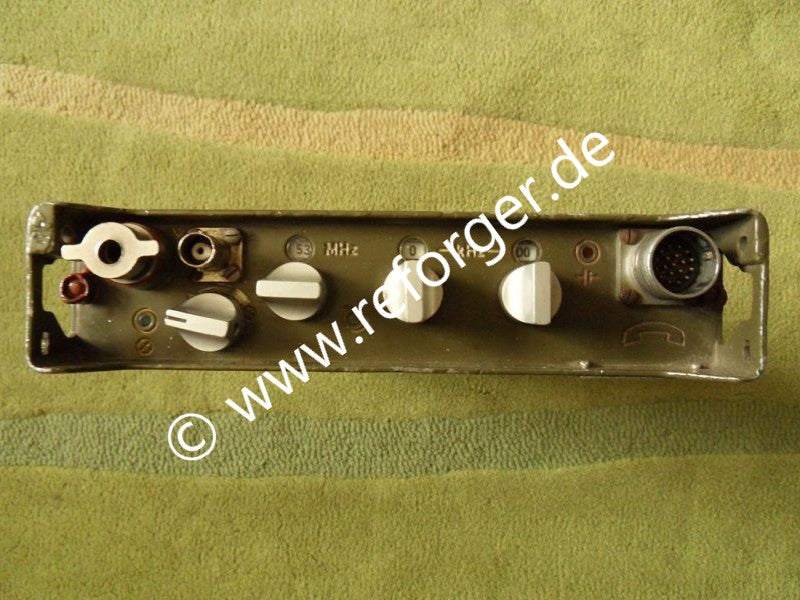

The RF-10 is a modern Czech military manpack radio.
Compared to other manpacks, it is very small.
It can be carried with or without a pouch—on the chest, on the back, or on the belt.

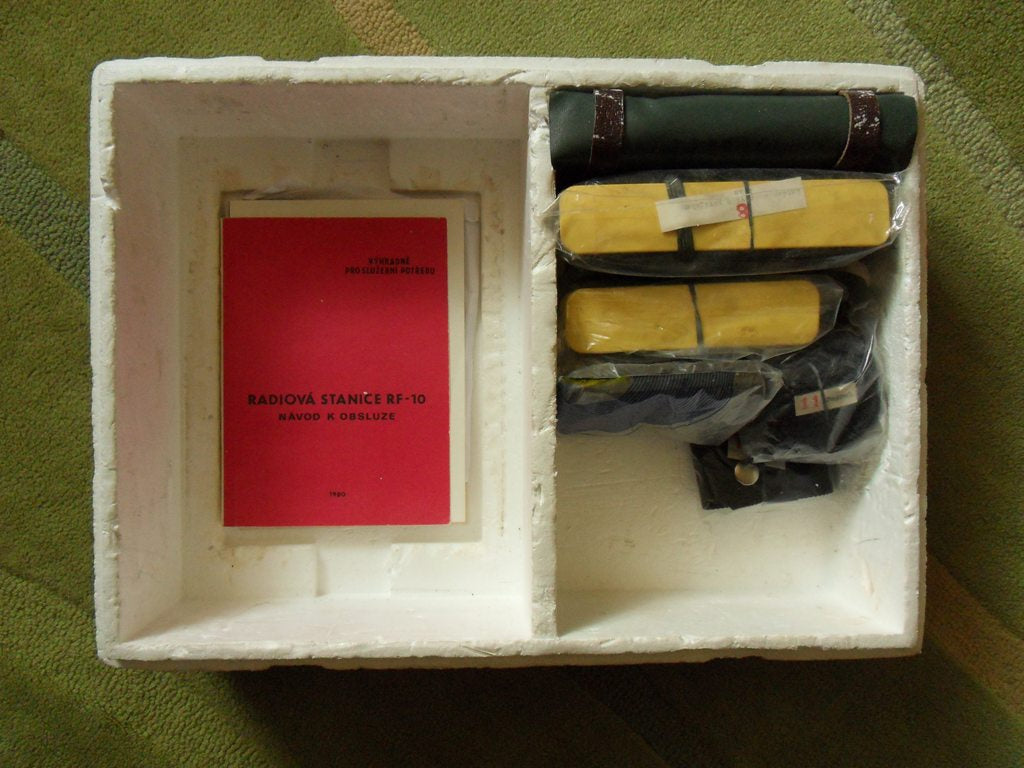

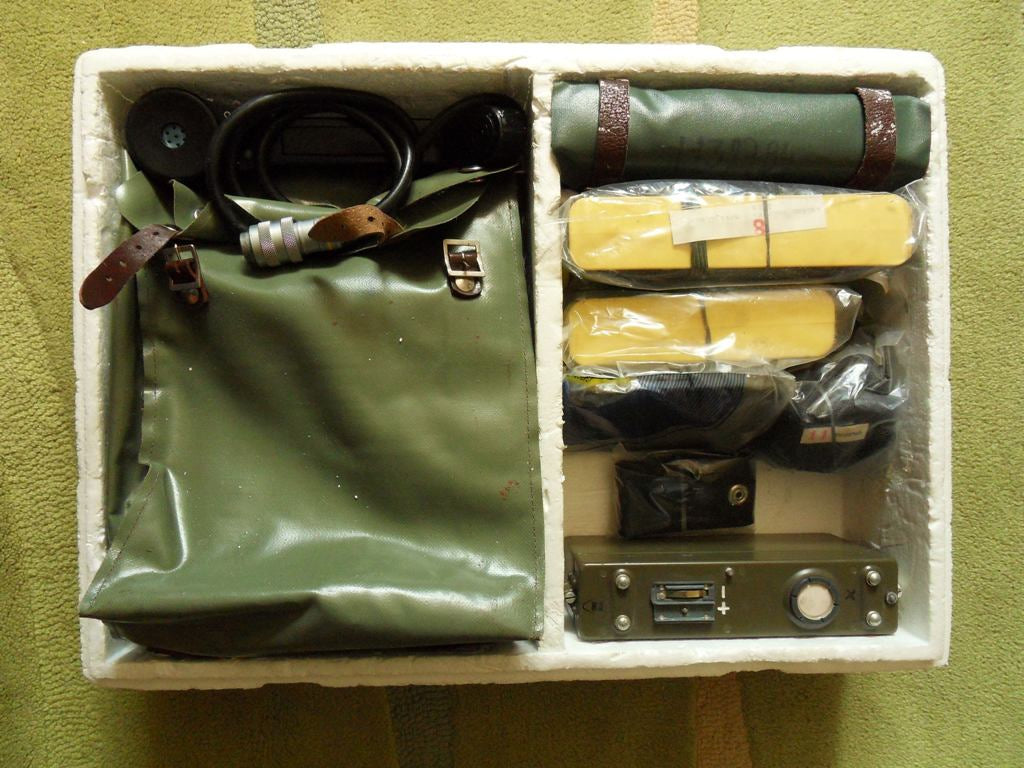

It comes with all accessories stored in a large styrofoam box.

Condition: Very good, used, function checked

Scope of delivery:

• The radio with battery pack
• Two rod antennas, different lengths
• One spare front panel
• Packing list
• Description (Czech)

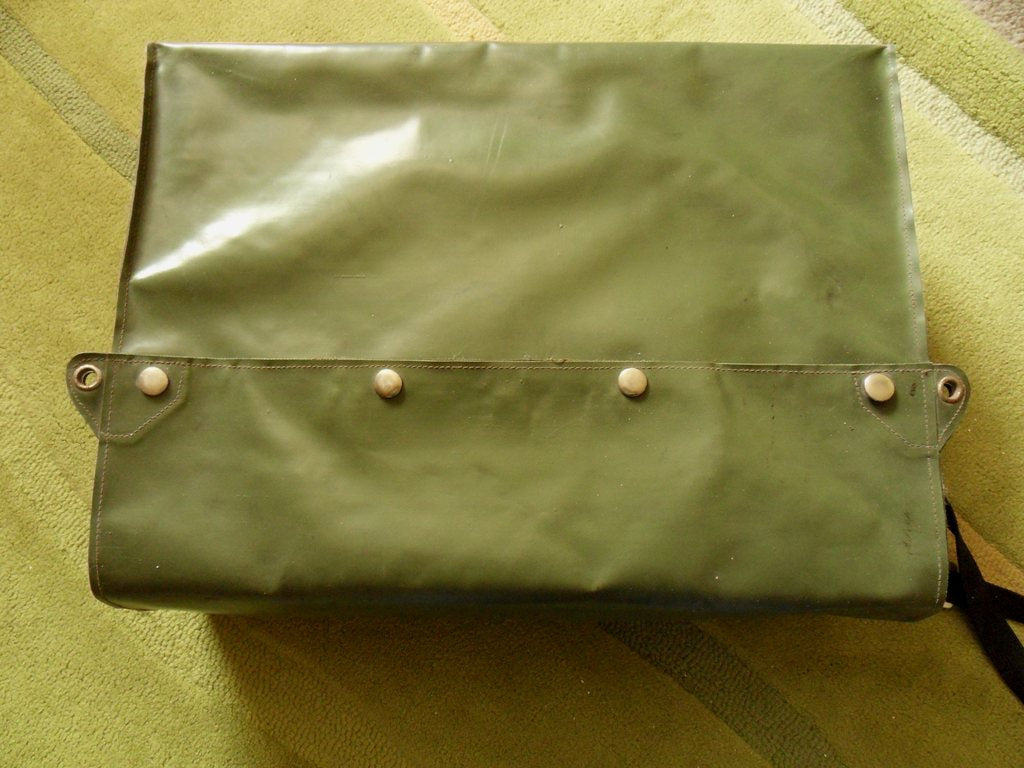

• Carrying bag with three carrying straps
• Second battery in a bag
• Handset
• Connecting wire

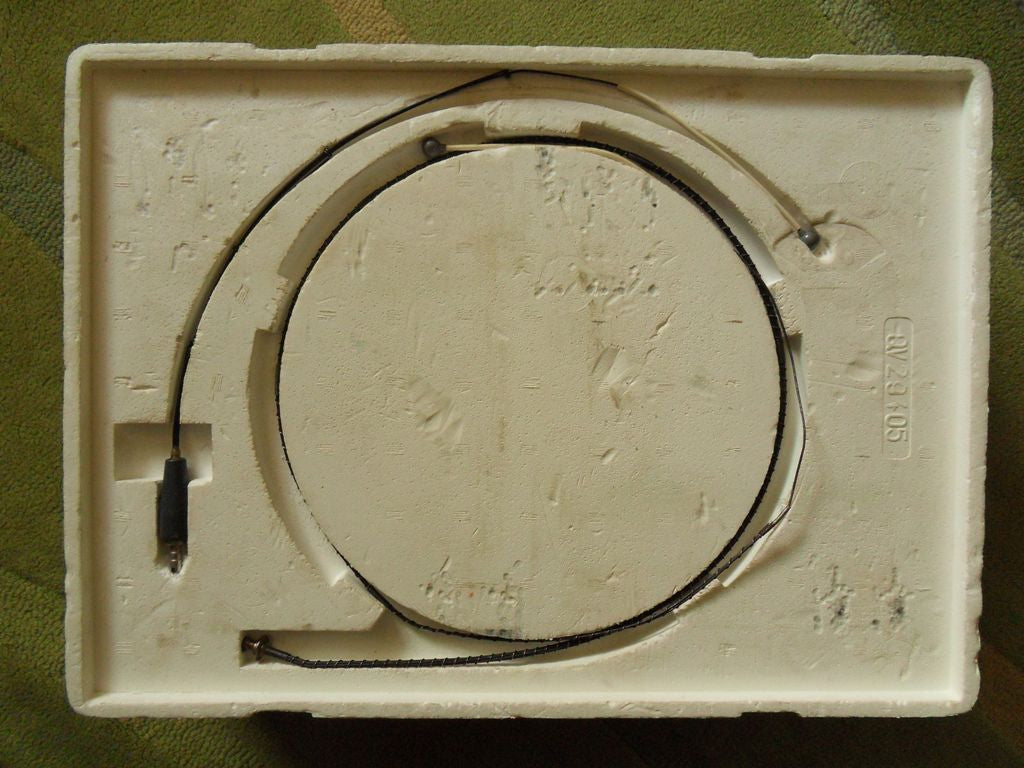

• Two wire antennas, different lengths
• Guy rope
• Small sheet metal box with accessories

Technical data:

• HF output: 1 W
• Channel spacing: 25 kHz
• Channels: 400
• Mode: FM
• NF output: 30 mW
• Sensitivity: 0.5 µV

Antennas and range:

• Short rod antenna (50 cm): 1 km
• Long rod antenna (1.5 m): 5 km
• Short wire antenna (3.3 m): 10 km
• Long wire antenna (30 m): 20 km

Additional specifications:

• Operating time (transmit/receive ratio 1:5): 10 hrs
• Battery: 6 V / 4 Ah
• Weight (complete in pouch): 8.1 kg
• Weight (radio unit): 3 kg
• Radio dimensions: 295 x 47 x 191 mm
